Let's see them engine bays!

[TheMaddTitan13]

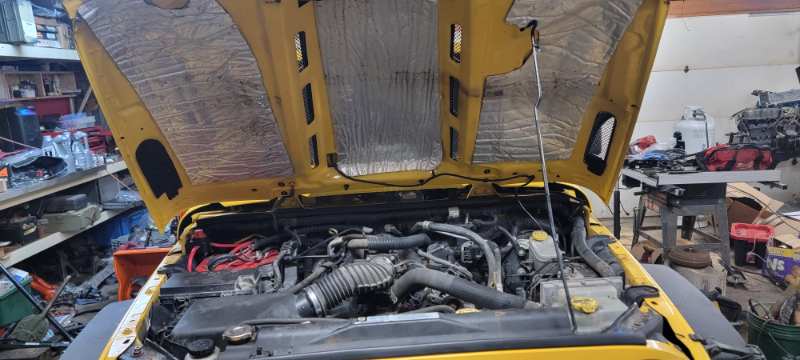

Rate my engine bay!  Curious to see it compared to others!



(The oil on my valve cover was from before replacing vacuum lines & my battery plate rusted out 😞 )

[ThatJeepGuy]

Loom your custom wiring additions and get a factory shroud for your mechanical fan



I surprised myself by finding a picture of everyone one of my vehicles engine bay besides 1...

[TheMaddTitan13]

44 minutes ago, ThatJeepGuy said:

Loom your custom wiring additions and get a factory shroud for your mechanical fan



I surprised myself by finding a picture of everyone one of my vehicles engine bay besides 1...

Would you say the heat pad on the hood is worth it? It gets pretty warm on the trail.

& I am definitely going to find a shroud.

You got some good looking engines!  The ones with engines, do they run?

[fiatslug87]

If you want to see some spectacular engine bays check out Gjeep’s and HOrnbrod’s.

[ThatJeepGuy]

1 hour ago, TheMaddTitan13 said:

Would you say the heat pad on the hood is worth it? It gets pretty warm on the trail.

& I am definitely going to find a shroud.

You got some good looking engines!  The ones with engines, do they run?



On that hood meh, idk its vented pretty well and the pad is like a kilmat soo its stuck there and I'm not ambitious enough to remove it.



I long swore against the mech shroud because most of mine would break and then fall into the fan and lock it up. However after installing brand new shrouds vs salvaging 30yr old ones, I wouldn't run one without it!

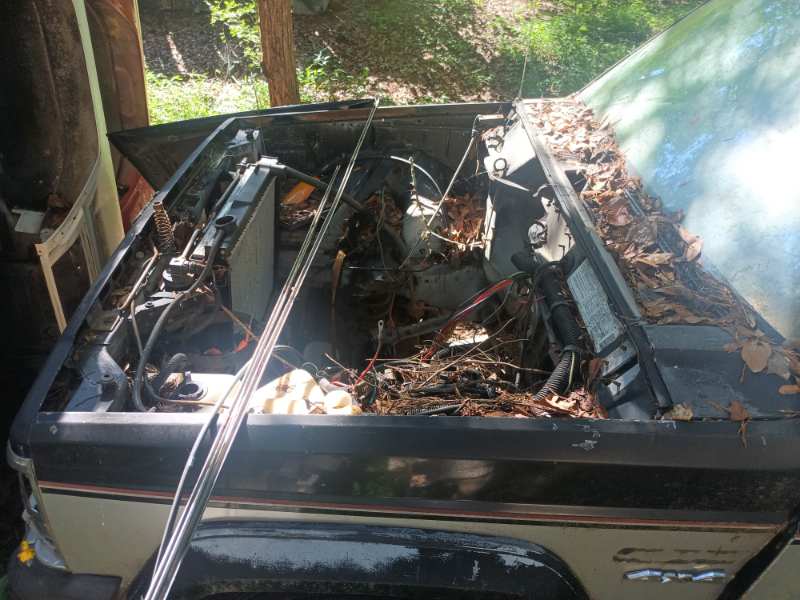

1st picture is not a running and driving vehicle - yet. Motor does run but there's no exhaust, cooling system or established fuel system. Otherwise yes the rest with engines are running and driving vehicles

[89 MJ]

[eaglescout526]

11 minutes ago, 89 MJ said:

Way to sneak the Eagle in.

[89 MJ]

20 minutes ago, eaglescout526 said:

Way to sneak the Eagle in.

In my defense, there were some SJ ones before that! Lol

[Strokermjcomanche]

[ghetdjc320]

This is the way



[TheMaddTitan13]

11 hours ago, fiatslug87 said:

If you want to see some spectacular engine bays check out Gjeep’s and HOrnbrod’s.

Ill have to look for it! I'm love a nice clean bay! & i may or may not be secretly looking for ideas to clean mine up lol.

[TheMaddTitan13]

10 hours ago, 89 MJ said:

What kind of thermo housing is that?!  & that blue 💙 😍  gorgeous!!!

My first xj was blue! You can't tell in the picture, but ill dig one out later!

[TheMaddTitan13]

9 hours ago, Strokermjcomanche said:

This is one of the cleanest bays I've ever seen in any car, definitely the cleanest jeep!!! It looks brand new! How many miles?

[AreWeThereYet]

This is definitely nice for reference as I’m sorting through mine. I don’t know much about the current engine other than it’s not original, most likely came out an 88, and it runs smooth.



[89 MJ]

1 hour ago, TheMaddTitan13 said:

What kind of thermo housing is that?!  & that blue 💙 😍  gorgeous!!!

My first xj was blue! You can't tell in the picture, but ill dig one out later!

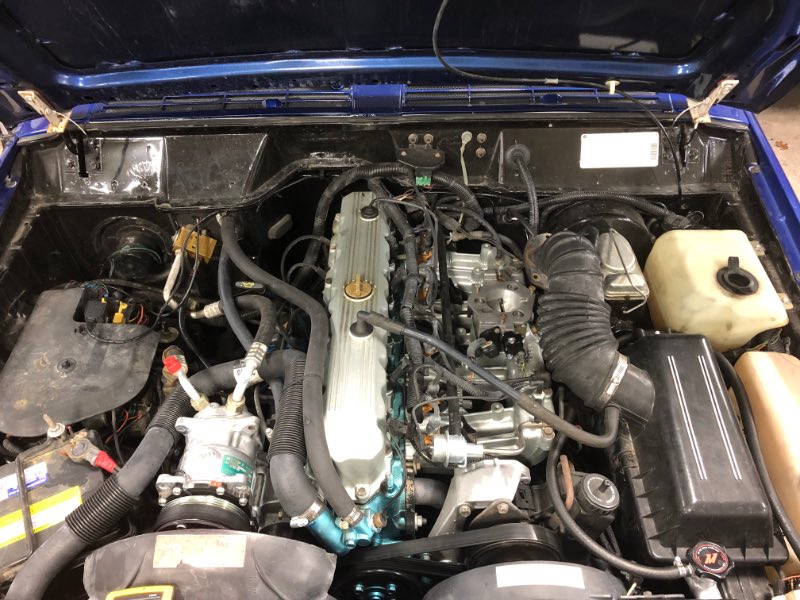

The top picture is a stock housing from a 258 powered Jeep. The second pic is a stock one for a 96 XJ.

I bet that XJ was pretty fun!

[Pete M]

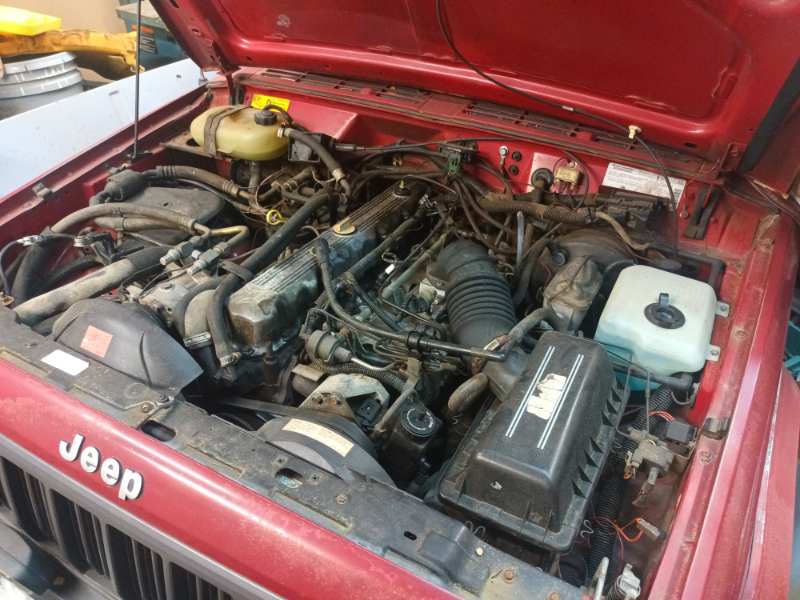

my torn apart 86

[Pete M]

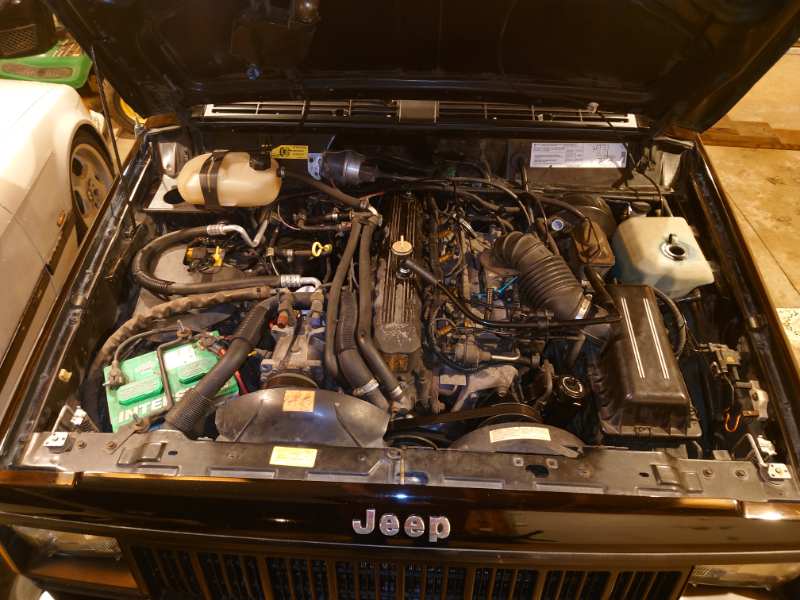

and my completely stock 88.  this thing is a fantastic resource for answering questions   (both mine and other peoples')





[ThatJeepGuy]

18 hours ago, ghetdjc320 said:

This is the way







You sir! Nicely done!! Making my LS engine bay all kinds of sweaty

[pizzaman09]

Lots of stuff all over the place but all factory setup.  I didn't quite install the cruise control actuator the way it was supposed to be.

[eaglescout526]

2 hours ago, pizzaman09 said:

didn't quite install the cruise control actuator the way it was supposed to be.

That looks like one of the 3 correct spots for it to be mounted and in the correct spot for that style of bracket.

[pizzaman09]

13 minutes ago, eaglescout526 said:

That looks like one of the 3 correct spots for it to be mounted and in the correct spot for that style of bracket.

After reviewing a few other installs, I don't think the bracket is setup the way the factory would have, that said, it fits well and doesn't interfere with anything.

[eaglescout526]

17 minutes ago, pizzaman09 said:

that said, it fits well and doesn't interfere with anything.

That’s the important part.

[Gojira94]

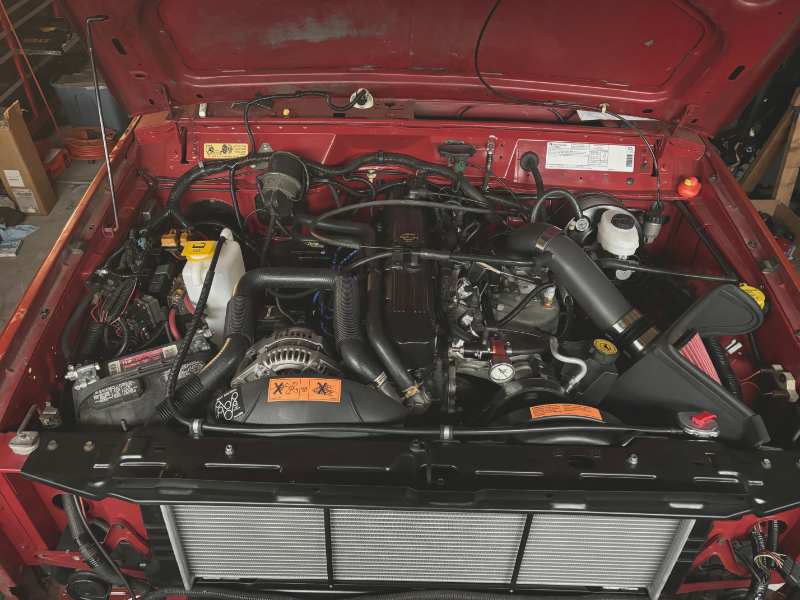

In honor of Cruiser54's posts about running an HO on Renix, here's an example. Cruise servo has been positioned to use the HO throttle bracket setup. Air cleaner and fuel rail are aftermarket, obviously, neither Renix nor HO...
