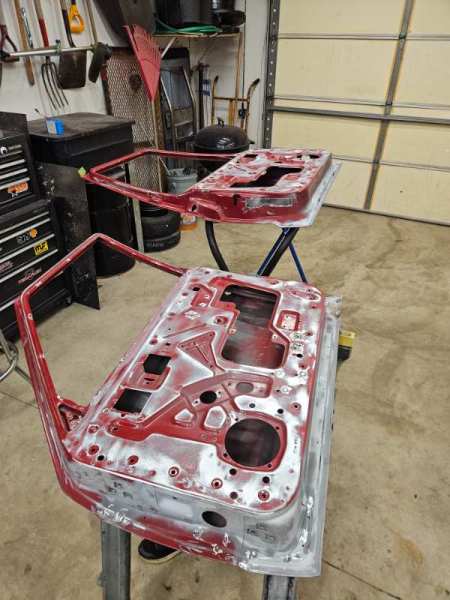

Picked up some power '97up doors.  Not sure at this point how I'm going to use them... parts donors for the 1-piece glass, regulator, and trim?  Or will I change out the striker and put the late doors on the truck?  One thing I'm unsure of is if the early interior panels can be mounted onto the late door...?




Link to comment
Share on other sites

  • 1 month later...
  • 3 weeks later...
  • 4 months later...

Finally getting back into the MJ game!



I couldn't bring myself to close up the frame without doing some kind of reinforcement/bracing.  So here it is; should add quite a bit of strength without a bunch of extra weight and moisture-trapping:










Link to comment
Share on other sites

I really like what you're doing here. I can definitely see the reluctance to avoid lap joints - sandwiched panels are a big part of what makes this such a pain in the @$$ to repair.



If you have to make a lap joint (For example, where the sheet metal floor pan fits over the uniframe rail flange), what is your plan for coating the mating surfaces? I plan to do an "OEM style" repair on my 89, and that's my biggest sticking point.

Link to comment
Share on other sites

15 hours ago, Minuit said:

I really like what you're doing here. I can definitely see the reluctance to avoid lap joints - sandwiched panels are a big part of what makes this such a pain in the @$$ to repair.



If you have to make a lap joint (For example, where the sheet metal floor pan fits over the uniframe rail flange), what is your plan for coating the mating surfaces? I plan to do an "OEM style" repair on my 89, and that's my biggest sticking point.

On 3/18/2020 at 1:37 AM, A-man930 said:












This is the best I can come up with.  I bought a bunch of small round stickers and I mask off the weld holes already drilled in the part.  I'll be using some kind of aerosol with a diffuser wand/nozzle on the areas I reach after welding; ideally a 2k epoxy like in the above picture, but I'm not sure the wand I have is compatible with those cans.  Otherwise I'm probably just going to rely on a cavity wax like Fluid Film reapplied periodically.

What I'm not sure of is if applying a weld-through primer onto these surfaces is beneficial, ineffective, or actually harmful.  I was digging around on I-CAR's website the other day and noticed that some OEMs have semi-recently advised against using weld-through primers due to concerns regarding weld puddle contamination compromising the integrity of the weld.  I'll see if I can find the article again.



Link to comment
Share on other sites

14 hours ago, MiNi Beast said:

looks like way more then i would want to do.....not sure if thats a good thing or bad thing. :sad2:



looks very detailed and your patience and work will be worth it over the longevity of it. keep it up i enjoy your creativity. :L:



Thank you for the kind words.  I hope to get a solid 25 more years out of this thing.

Link to comment
Share on other sites

22 hours ago, Minuit said:

If you have to make a lap joint (For example, where the sheet metal floor pan fits over the uniframe rail flange), what is your plan for coating the mating surfaces? I plan to do an "OEM style" repair on my 89, and that's my biggest sticking point.



Here's another place I did the sticker thing:




Edited by A-man930
picture problems
Link to comment
Share on other sites

Success with the diffuser nozzle tube thingey!






This can seemed to empty itself quite rapidly compared to the last one with the regular nozzle.



This is where the wand came from; I've just been clearing it out with some brake clean and re-using it wherever it'll fit

Link to comment
Share on other sites

So I see you've read the same articles I have. It seems like FCA's objection to weld-thru primer is concern about weld contamination, based on some of the reading I've done. Right now I'm not sure of a better option though. The rust jacking between flanges is a severe problem on my truck, and I'd really like for it to not happen again. I'm not a body guy though.



My plan as of right now is weld-thru primer on the flanges, 2K epoxy primer+ body color paint anywhere I can reach that isn't a weld area (including the underside of the frame braces), and once it's all done a coat of Fluid Film everywhere I can get to.

Link to comment
Share on other sites

2 hours ago, Minuit said:

So I see you've read the same articles I have. It seems like FCA's objection to weld-thru primer is concern about weld contamination, based on some of the reading I've done. Right now I'm not sure of a better option though. The rust jacking between flanges is a severe problem on my truck, and I'd really like for it to not happen again. I'm not a body guy though.



My plan as of right now is weld-thru primer on the flanges, 2K epoxy primer+ body color paint anywhere I can reach that isn't a weld area (including the underside of the frame braces), and once it's all done a coat of Fluid Film everywhere I can get to.



So, you're planning on only weld-thorough primer on the entire flange surface?  I would recommend looking into weld-through primer's adhesion properties (or lack thereof).  What I have read indicates that what makes the stuff "weld-through" also greatly diminishes how well the stuff protects from corrosion on the long term.  This is what led me to mask off for a tiny heat-affected-zone around each plug weld area and apply the good stuff to the remaining surface.  What I am unsure of is whether to spray the weld through on these masked off areas right before welding.  But I've not seen much to indicate that the weld itself gains any corrosion resistance from the primer.

I need to read up on this topic again.



Link to comment
Share on other sites
