ComancheKid45 Posted November 2, 2011 Share Posted November 2, 2011 Alrighty, now that ive got my OEM SWB rollbar and lights on my 90 Eliminator does anyone have a picture of how the factory setup the switches for factory fog lamps and Factory over head lights? I have an OEM switch to use and would like to keep the switch pods as stock looking as possible but Ive never seen the interior of an MJ with factory rollbar lights :hmm: Any help is greatly appreciated...thanks! :cheers: Link to comment Share on other sites More sharing options...
btm24 Posted November 2, 2011 Share Posted November 2, 2011 I think the switch gos right next to the cargo light switch. I have a pic some where hold on and I'll get it for ya. Brandon Link to comment Share on other sites More sharing options...
btm24 Posted November 2, 2011 Share Posted November 2, 2011 Brandon Link to comment Share on other sites More sharing options...
64 Cheyenne Posted November 3, 2011 Share Posted November 3, 2011 Brandon What about if it has a cab light, reason is, that is the switch I have for my rear cab light. Or are you talking about the fog one? Or what about if it has factory fogs, roll bar, and rear cab light? Link to comment Share on other sites More sharing options...
btm24 Posted November 3, 2011 Share Posted November 3, 2011 I'm 90% sure that the right one is always just the cab/cargo light switch and the left one is both the fog lights and the roll bar /sport bar lights. Brandon Link to comment Share on other sites More sharing options...
ComancheKid45 Posted November 3, 2011 Author Share Posted November 3, 2011 You don't think that 2 sets of lights running off that switch would overpower it? Also that would pretty much eliminate use of the fog lights on the street if the overheads kicked on as well.... :hmm: Link to comment Share on other sites More sharing options...
Rymanrph Posted November 3, 2011 Share Posted November 3, 2011 You could always run another switch on the left side of the steering wheel if you didn't want them running off of the same switch. Link to comment Share on other sites More sharing options...
87Warrior Posted November 3, 2011 Share Posted November 3, 2011 You don't think that 2 sets of lights running off that switch would overpower it? Also that would pretty much eliminate use of the fog lights on the street if the overheads kicked on as well.... :hmm: Not if you are using a relay, which you should be doing anyhow. You could find another fog light switch pod and move the face to your existing pod on the right of the steering wheel. I would want fog and overhead lights on different circuits. :nuts: Link to comment Share on other sites More sharing options...
ComancheKid45 Posted November 3, 2011 Author Share Posted November 3, 2011 Yes Relays are a must ;) I also want to run seperate circuits for the Rollbar lights and Fog lights. I think ill just mount an OEM switch in and empy pod and call it good....not that big a deal :thumbsup: Link to comment Share on other sites More sharing options...
maddzz1 Posted November 3, 2011 Share Posted November 3, 2011 I didnt think MJs came with factory rollbar lights. I thought the bar just had the tabs for you to add them. If they did come with factory rollbar lights then they were probably controlled by the switch for the cargo light since it probably wouldnt have a cargo light because it would be behind the rollbar. Link to comment Share on other sites More sharing options...
Gjeep Posted November 3, 2011 Share Posted November 3, 2011 My '89 came with a factory roll bar and I have a NOS MJ roll bar lighting kit. On the right side of the steering column is where the roll bar light switch goes...it's on a similar pod as the left side. Don't have photo's as my truck is in pieces. Link to comment Share on other sites More sharing options...
ComancheKid45 Posted November 3, 2011 Author Share Posted November 3, 2011 So a Fully loaded Automatic Transmission MJ would be equipt with the following switches in the 4 pods... Fog Lamps, Cargo Lamp, Power/Comfort, and Rollbar lamps That would explain why there is 4 pods available for switches :smart: Link to comment Share on other sites More sharing options...
Automan2164 Posted November 3, 2011 Share Posted November 3, 2011 My '89 came with a factory roll bar and I have a NOS MJ roll bar lighting kit. On the right side of the steering column is where the roll bar light switch goes...it's on a similar pod as the left side. Don't have photo's as my truck is in pieces. What does the picture over the switch look like? Rob Link to comment Share on other sites More sharing options...
Gjeep Posted November 3, 2011 Share Posted November 3, 2011 Looks exactly like the icon for the fog/driving light switch. I have a scanned pdf of the installation sheet if anyone is interested in getting a copy and posting it up in the forum. I have no idea how. gjeepm@yahoo.com Link to comment Share on other sites More sharing options...
HOrnbrod Posted November 3, 2011 Share Posted November 3, 2011 G, you can convert a .pdf to .jpg by opening the .pfd file in Acrobat or Foxit Reader, view it full screen, then do a SHIFT/PRINT SCREEN. Then open your favorite graphics program, like Paint Shop Pro, and paste it in as a new image. :cheers: Link to comment Share on other sites More sharing options...
Gjeep Posted November 6, 2011 Share Posted November 6, 2011 Link to comment Share on other sites More sharing options...
ComancheKid45 Posted November 6, 2011 Author Share Posted November 6, 2011 Awesome! Thanks!!! Link to comment Share on other sites More sharing options...
fiatslug87 Posted November 6, 2011 Share Posted November 6, 2011 Wow! Great resource. Thanks G. Link to comment Share on other sites More sharing options...
btm24 Posted November 7, 2011 Share Posted November 7, 2011 That's crazy weird I swere I posted that up :nuts: Either way thanks for that :cheers: Brandon Link to comment Share on other sites More sharing options...
87coman Posted December 15, 2012 Share Posted December 15, 2012 I am missing the switch on the right . Does anyone know where I can get one at. I have looked all over the internet for one. Thanks Link to comment Share on other sites More sharing options...
skidoo_j Posted December 16, 2012 Share Posted December 16, 2012 I'd like to acquire the switches on the left side of the column. the fog and rear cab light. With the logos. I don't have the rear cab so i'd make that the rollbar light switch. and the switches on the right would become lockers when i get there. Link to comment Share on other sites More sharing options...
Eagle Posted December 16, 2012 Share Posted December 16, 2012 Yes Relays are a must ;) I also want to run seperate circuits for the Rollbar lights and Fog lights. I think ill just mount an OEM switch in and empy pod and call it good....not that big a deal :thumbsup: I've never seen an MJ with anything mounted in the switch panel to the left of the steering wheel, but most XJs have something there. Hit the junkyards and get an XJ panel for the left side. Link to comment Share on other sites More sharing options...

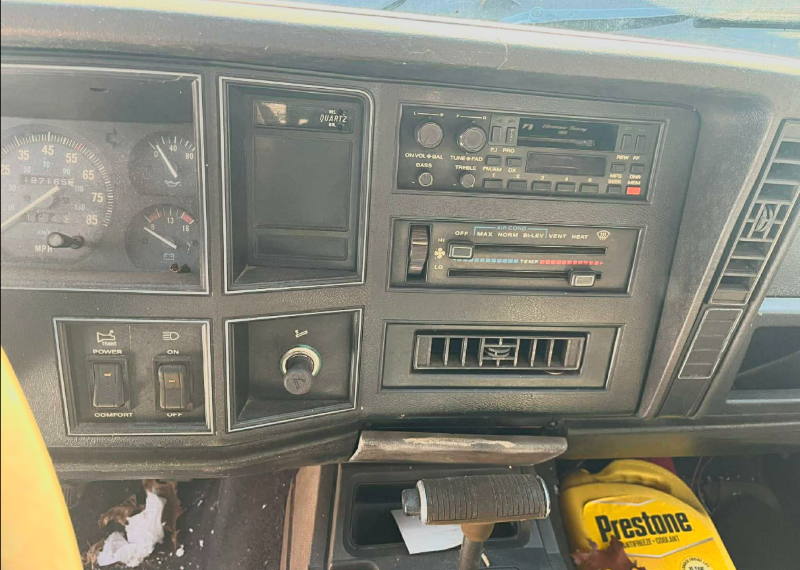

fiatslug87 Posted December 16, 2012 Share Posted December 16, 2012 Pic of the roll bar light switch Link to comment Share on other sites More sharing options...
ComancheKid45 Posted December 16, 2012 Author Share Posted December 16, 2012 Hey, this thread has been in hiding awhile.....haha Thanks for the pic though and I went ahead with just a factory switch mounted to the right of the steering column ;) Link to comment Share on other sites More sharing options...
