  1. Can't wait to see that J10 without the snow, I'm drooling over here already
  2. I've been getting ads for these on my IG feed lately, stoked to see how well it works and what you make with it!
  3. Got the carpet all pulled out this weekend and there was more rust than I expected. Thinking the cowl is leaking because the carpet was still damp underneath after all the rain we just got. I took a power drill with a wire brush and cleaned up all the rust, luckily it was almost all surface rust. The section closest to the door however was pretty chewed up. I was able to clean it down to bare metal, and there are a couple small holes I will be patching up later. I painted it with some rust-preventative paint in the meantime, and will be driving it without carpet or anything until we come back to re-do the interior later. With the transmission out I got started installing the shift lever for the t-case and brackets for the Novak Cable Shift kit. With all the prep work done, it was time to put the donor transmission in!! Everything is bolted up, and I replaced some of the hardware with Grade 8 bolts (those star bolts on the top, the cross-member hardware, and the transmission mount bolts) I did notice the TV Cable was shorter than the original one, and I had to re-route it. I'm thinking maybe because this donor came out of a renix era Jeep it was a different length because it mounts to a different point. The speedo sensor is also too short and I need to extend the wiring. Other than that everything was completely plug and play. All that is left is get the rear drive shaft shortened and finish the exhaust. Hoping to take it out to Last Chance Canyon in Mojave early next month for the maiden voyage.
  4. Making slow progress on this thing. Spent Saturday mocking up the new exhaust and pulling the trans, however I got sick and couldn't get much done on Sunday. Hoping by the end of this coming weekend we'll have the 4WD swap completed! If anyone is looking to do this swap, I found some great info that has been helping me out; https://www.pullapart.com/video-library/videos/how-to-pull-a-jeep-40l-automatic-transmission-jeep-cherokee-grand-cherokee-and-wrangler/ https://www.naxja.org/forum/showthread.php?t=954587 https://www.naxja.org/forum/showthread.php?t=954587 I looked at a few exhaust options, definitely wanted something tame because my ears can't handle long drives in loud cars anymore. I ended up going with a Dynomax Ultra Flo-Welded and will be welding a flex pipe into the front portion of the exhaust; https://www.amazon.com/gp/product/B00029J3CU/ref=ppx_yo_dt_b_asin_title_o06_s02?ie=UTF8&psc=1 Finished welding on all the hangers and stuff, then set it to the side and proceeded to pull the transmission. Unplugged 3 sensors, cooling lines, shifter linkage, flex plate bolts, cross-member, then mounting bolts, badda-boom badda-bing it was out within an hour! I pulled the bench seat out and started working on getting the T-Case shifter handle installed and my new Novak adapter linkage kit started, However I ran out energy and could no longer breath out of my nose, so I'll be picking it back up next weekend. Bonus doggo photo!
  5. Not bad at all, only down side with how I did it is that you can't spin the tie rod itself to adjust like you would usually. So you have to unbolt it at the knuckle to adjust it every time You could probably run like a 1" DOM tube to avoid clearance issues but strength and reliability were more important to me than convenience. I did a rough alignment in our shop, then drove it to the tire store by me and they aligned everything with no issues. Steering feels great, even when the alignment is off it doesn't like death wobble or anything, just feels twitchier than normal.
  6. Got the motor and transmission from my old XJ separated finally. It's an AW4 with an NP242, still waiting on some other parts to get here before I can start swapping it all in.
  7. I'd probably say Dumb and Dumber, that movie still makes me laugh but a lot went over my head as a kid and as I grew up I didn't appreciate some of the jokes quote as much. Same with Empire Strikes Back, I would love to re-watch it for the first time as an adult.

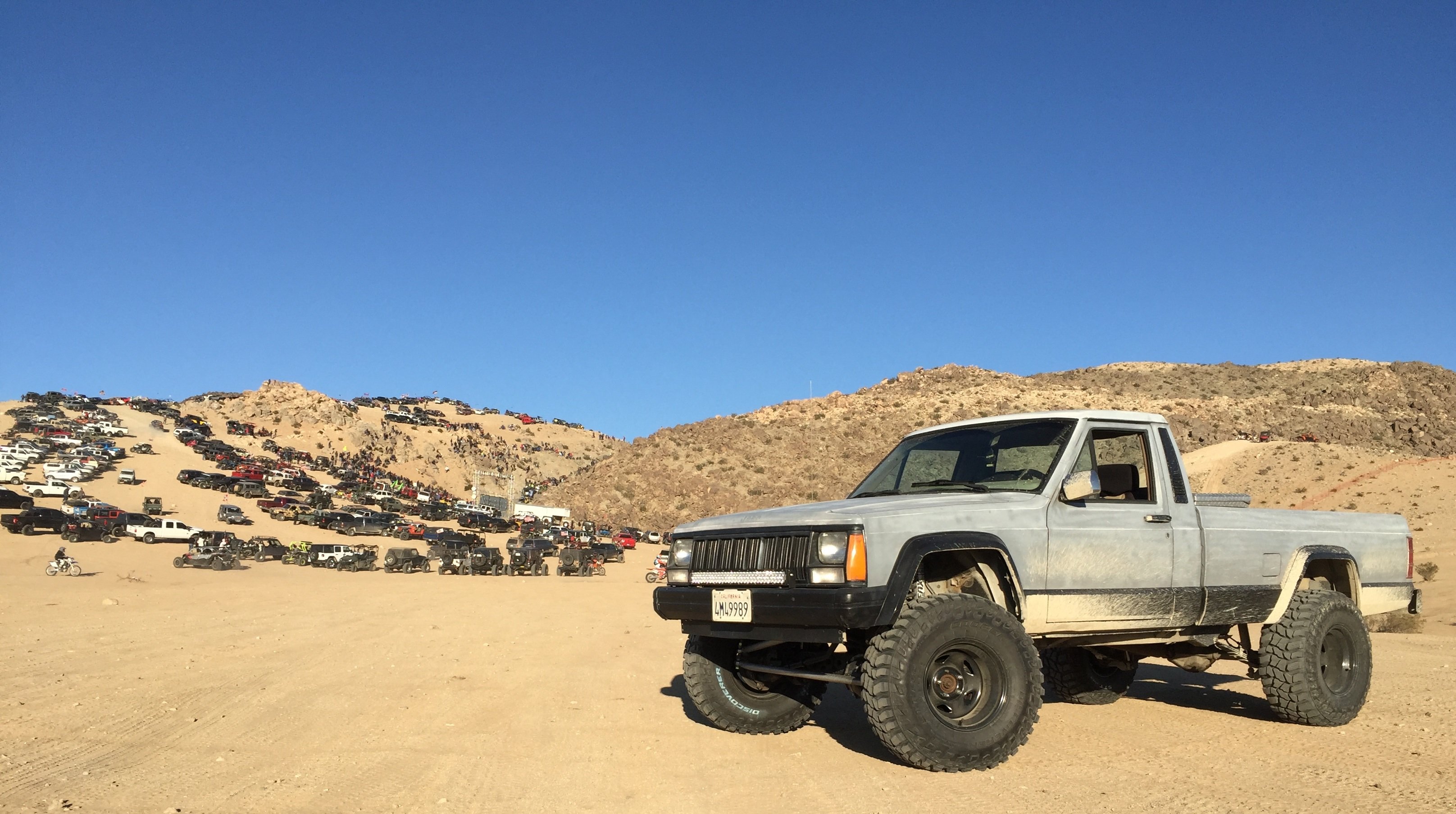

  8. I grew up driving Jeep Cherokees, and my daily all through college was a budget rock crawler XJ. Ultimately the motor died from abuse at around 200k miles a few years ago. I got a reliable daily and the goal was to rebuild that Cherokee from the ground up…. until I spotted this Comanche on Craigslist. I’ve always wanted a Comanche, and after going to look at it in person I was sold. It’s a 92 2WD long bed with the HO 4.0, and I have all the parts needed to convert it to 4WD. The game plan was to drive this truck to KOH, which gave me 4 weekends since I don't store the truck at my place. So I pulled the front axle, drivetrain, suspension, and any little piece I could use off my XJ. First job was to give the front axle some love. I purchased an Arctec truss with Currie Johnny Joints, Solid diff cover, Ten Series tube seals, ball joints, and started to replace everything. I cleaned the axle down, propped the truss into place, and followed the instructions I got with the kit. The truss needed to be clamped down onto the axle on the backside as there was some gap between the truss and axle tube. First I just tacked all touching parts to help prevent any warping. Next I welded it on opposite sides for 1” intervals, and allowed it to cool for 15mins between welding the next spot. Once all the tubes and end were done it was time for the cast. I read a lot about this, and was a little nervous as this is my first major welding project. My buddy held a torch and heat sensor and warmed it up, but the air was so cold so we couldn’t keep it above 200-250 without constant applied heat. (using MAPP gas) So while it was sitting at 250ish, my friend would concentrate on one area until it hit 325, and when he moved to the next spot I would weld behind him, and I chased him around the axle. When we finished 2 people picked it up by the knuckles, and one person wrapped it in a welding blanket, and we let it sit overnight around 12 hours. (sorry lack of photos, it all happened so fast) Next morning it all looked good to me, and seems strong! With that done and the axle assembled, it was time to start putting parts on! The rear was pretty straight forward, new leaf springs and used a Dodge Dakota brake line. One thing that surprised me was the shock, I had Fox 2.0 shocks on my Jeep (for a 4.5” lift kit) and wasn’t sure the rear shocks would fit after reading some posts. After measuring in the OEM shock mounts I have around 3.5” down and 4.5” up, and figure the leaf springs would settle with weight in the bed. I also lucked out on the leaf shackles, as the stock ones were too short. I had some aftermarket extended hangers from my old XJ and they worked out well. I’m hanging onto the stock springs for SOA down the road. Originally I was planning on using my old steering linkages as I had the solid tie rod from a Grand Cherokee, but the tie rod ends were super worn out. I ordered some new steering parts with my ball joints, but I didn’t check the steering parts when I got them and none of it fit together. I decided to pull the trigger on Ruff Stuff’s Heim steering kit. Link to steering build; https://comancheclub.com/topic/57502-ruff-stuff-34-heim-steering/ As for the front end the whole thing came off, we just unbolted it from the body and rolled it out on the stock wheels. . From my old Jeep I had those Fox shocks, 4.5” rough country coil springs, and some generic extended lower control arms. We got the axle bolted in and the coils in place. I decided to change the lower shock mount because the pin bent the mounting area pretty bad. I welded on a square plate with shock tabs, and gave it a little lean into the body. I also picked up some extended brake lines from Rough Country along with one of their HD Track Bars. I plan on doing a lot of weekend highway driving in this thing to go wheeling and camping, so I chose to get some Cooper Discovery STT Pro’s since I read they are not as loud as traditional mud terrains. I have about 350 miles on these tires now and they have been great so far. I also took a chance and mounted them on Crager V5 15x10 rims. I’ve read some people saying you can’t air down as far on 10” rims, and some people say they’ve never had a problem. I just liked the idea of a wider footprint and the look of a more filled out tire. After putting the tires on it was time for some fender trimming. The rear doesn't rub bad, but the front needed a lot cut. Here is a guide how to trim and keep your stock fender flare! https://comancheclub.com/topic/57504-relocated-front-fender-flares/ After installing everything I put around 50-75 miles on the truck to find any other issues and then I hit the road! I loaded up and drove 2 hours out to Johnson Valley for KOH. Although it was still only 2WD, I was stoked to get a lot done and put about 300 miles on the truck and see how everything was going to work. This truck cruises 65-70mph on the highway with no issues, and felt great ripping around the desert all week. I'll be doing the 4WD conversion early March and plan to document the swap as I go.
  9. I wanted to keep my stock fender flares after trimming, so this was my solution. This is for 4.5" of lift with 33s, I only rub the ends of the plastic on the flares at full bump now. Here is the stock clearance. First step is to remove the inner wheel well and flares. I ditched the wheel well liner, but if you plan on keeping them, they will need to be trimmed and you will need to be careful when removing them. Mine ripped before becoming undone. Clean all the dirt off and cover the area is masking tape so you can use a Sharpie to sketch out where you plan to trim and drill. Place the fender flare when you want to position it, and trace it with your sharpie. I moved mine around 1.5" up or so. There will be 3 metal plates in the fender flare, however I opted to ditch those, and just use plain nuts and bolts with washers. With the flare in position mark all the bolt holes you plan to use and drill, I used a slightly over sized drill bit to allow for some flexibility. I also added tapes to the ends of the flares, the plan is to trim along the body line to keep it clean. With everything traced, its time to cut away as much as you can. I could have cleaned up the lines but figured it would be covered so it didn't matter to me. With the fender now cut, add some paint to keep any of the now exposed metals from rusting. All you have to do now is bolt the fender flare on after you trim it and it should look like this.
  10. Sorry for lack of pictures, I was kind of doing this with no guide so I didn't think it would turn out so well. My stock steering was totally blown out so I opted to get a good replacement. http://www.ruffstuffspecialties.com/catalog/78STEER.html First thing I did was mock up the tie rod on some jack stands. Because I was using 1.5" tubing, it was going to need clearance. I eyeballed some different angles and measured, and figured 15 degrees should be good. I put the bends in 9.5" from the end of the tube. With the bends in I started to mock it all up to see how much I would need to trim, Ruff Stuff gives you pretty long tube just in-case. With the heim threads screwed in halfway, I trimmed off the ends until it sat aligned, and ended up cutting around 4.5" off either side. I used the same method for the drag link, heims half way threaded and cut to fit. You will need to drill out your knuckles and pitman arm to fit 3/4" bolts. Took me 2 drill bits to get through it all, I am also running a drop pitman arm to match the track bar angle. (sorry for no photos!) Once I had everything mocked up, I welded in the bungs, bolted it on and cycled the steering to make sure everything cleared and there were no binds. The last step was to add some metallic silver paint, and had it aligned. I have about 350 miles on this steering now and it has been great, it didn't wobble or anything before the alignment and feels great driving through the desert at speed. I realized after I should have welded a tab onto the pitman arm to double shear the heim so I'll be redoing that at another point in time.
×
×
