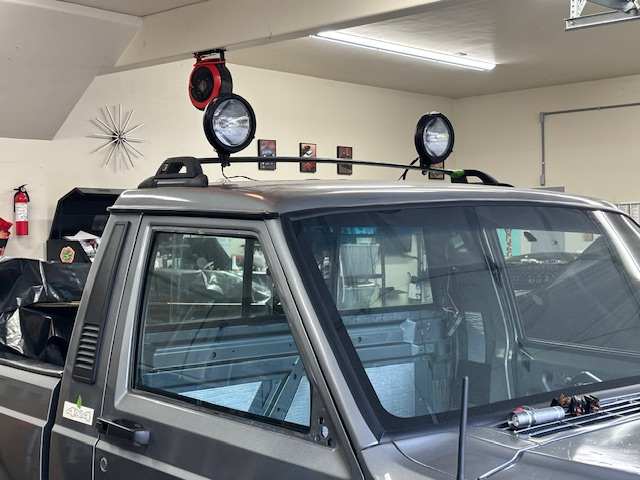

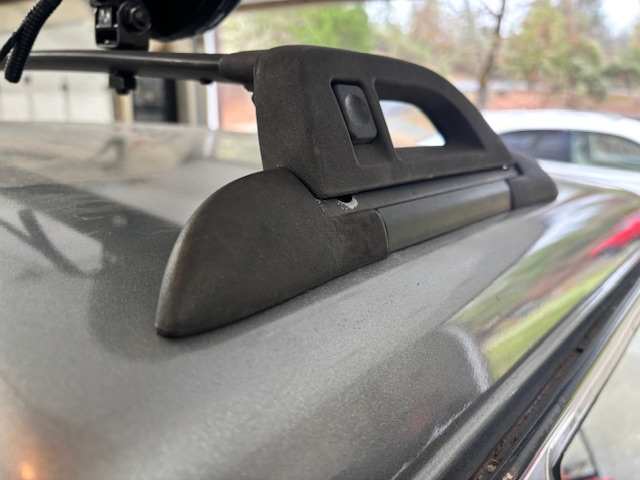

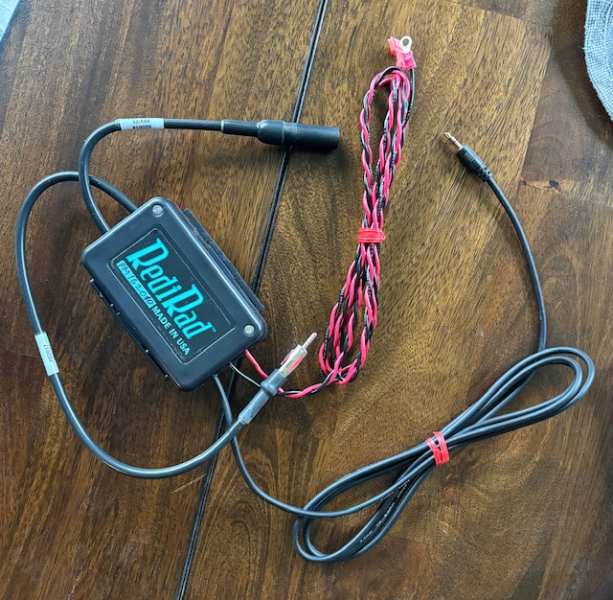

Project: Slippery Slope – a ’91 MJ runner

[Gjeep]

Goodbye load sensing valve setup – this MJ gets an XJ combination valve and loses the hardline that manages the rear axle valve. I’ve never liked the balance in braking that the factory MJ setup had. I swapped over to this set up on my other MJ and ran it 150K without issue/ lockup around the crazy roads and drivers of California for years. World of difference and confidence. Once I swap the front axle swap, cross drilled rotors and new braking components will complete this stopping power metamorphosis.







[Gjeep]

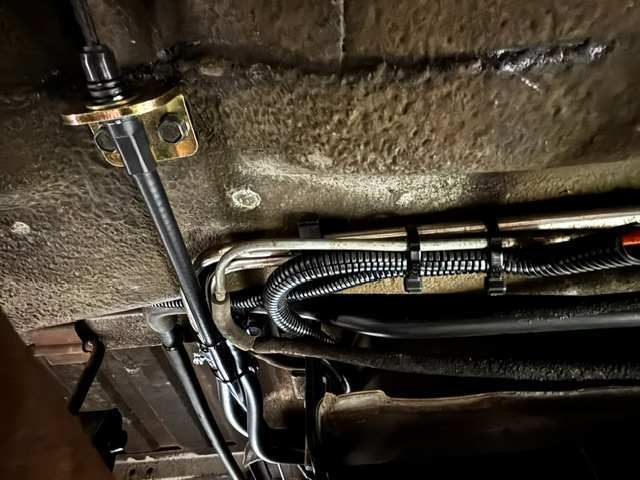

Although not completely done, I got the XJ hand brake cable/ bracket in place and connected it to the MJ parking brake splitter. To support the hand brake under the MJ floor pan I drilled out an XJ backside bracket. It stiffens the floor up well.







I also installed the newer style CPS (’93-’95) and couldn’t be happier with the amount of distance it provided to keep that wiring away from the header. I needed to swap the connector as the pins are inline versus triangular as in the ‘91/’92 CPS. The wiring itself is now pressed up against the firewall, behind a brake line to keep it from moving. This era CPS with its longer connector provides an extra 1.5” of length. When removing the old CPS, which was original no doubt as bolts were unscathed, I was surprised to see there was no grommet in the bell housing for it to reside in.





[Gjeep]

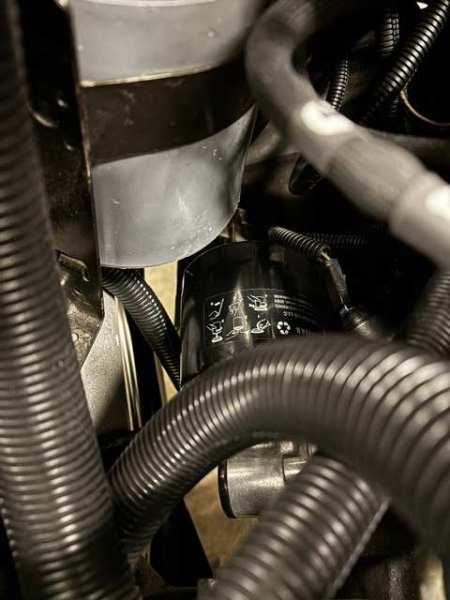

Always an adventure. What I though was going to be a reasonably quick change of gasket turned into a trying of patience. PO (or I’d guess PO’s mechanic) RTV’d the oil pan to the block almost 1/4” thick and it was on there. On there good.  Lost count how many times I walked away from it. I ended up bending up the oil pan lip so much that I ordered a new one from Mopar. Front side of the pan had a thin gasket strip that I’ve never seen and no RTV. Oil was coming out regularly in this spot – mainly because the RTV was on so thick. Front side had this thin gasket or old gasket scrap that was 1/8” thinner than the rest of the junk. Crazy. On to changing rear main seal; then FelPro gasket on the pan.





Been a while since I’ve looked under a 4.0L and saw it withOUT girdle.





A stamped steel 4.0L valve cover is going on with a new FelPro gasket and New Comer Racing billet bolt grommet retainers. I had good luck having swapped this cover onto my other MJ long ago. No more oil-soaked air filer. This cover has new CCV and PCV elbows and grommets also.

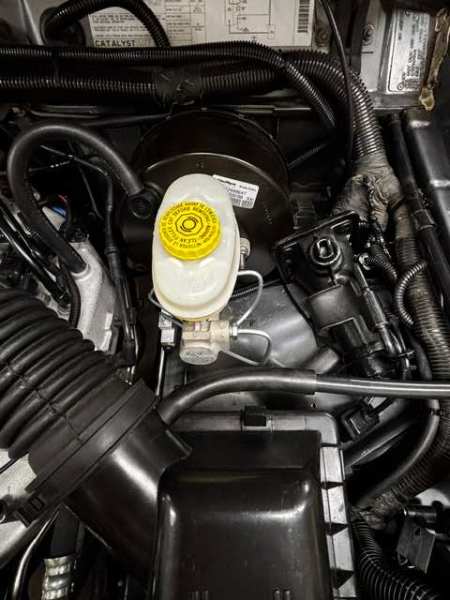

Lastly, I installed the ’95 XJ dual diaphragm booster and bent up lines to the new XJ combo valve. This calls for a mix of standard flare and bubble flaring at the master cylinder. I’ll be placing the bottle jack and related tools under the hood like my other MJ.





[Gjeep]

Cutting, bending, shaping is what I’ve been up to – Forgot that changing over to the newer style belt tensioner means cutting off the boss that was once used with a probe to read timing back in the day. (Could have used the newer timing chain cover, but the harmonic balancer is already on…)







Also, the under the hood jack bracket was shaped into something that works for the MJ. Needed to redo one of the master to combo brake lines to accommodate the location. This build I’ll be using the MJ versus XJ jack ‘crank’ (as done on my other build for fitment). MJ crank is obviously longer. All will be cleaned up and painted, but same idea applied this round with the Ford jack related clips. Clears the hood prop rod when in the lowered position, so all is good.













Good times disconnecting the front side brake line – I soaked them, heated them, and still couldn’t get the passenger side off with out absolute destruction. Fortunately, Jeep provided enough line that I was able to put another nut on a flare.







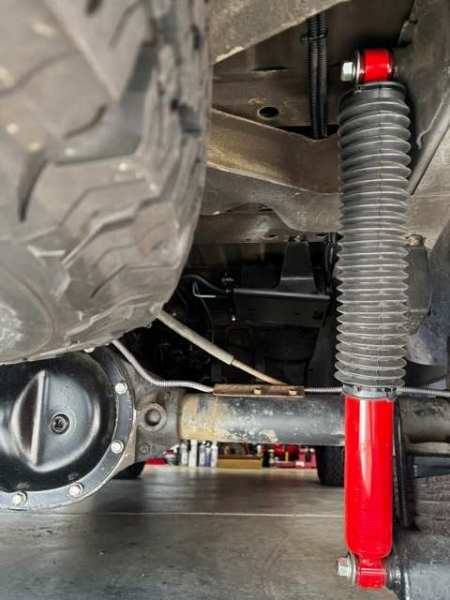

And front axle is out. This MJ will remain 2WD, but I’m upgrading to the axle/ends that accept hubs versus the greaseable bearings. Again, just keeping components consistent with the other Jeeps in the herd. New ZJ steering linkage/ V8 sway bar, Mopar hubs, cross-drilled rotors, calipers, coils, brake lines, etc will be installed as it goes back together. I want the front end to be brand spankin new. I went with OME heavy-duty coils that will raise the nose ever so slightly. KYB MonoMax shocks will be installed all around.









[Gjeep]

Always fun waiting on parts to move forward, but I’ve been chipping away at little things engine bay – got the jack set up cleaned up and installed under the hood, distributor wires in, bored TB and NOS Mopar related sensors, various broken connectors replaced, and I forget what else.









Landed a SB MJ camper shell that was removed a year after the truck was purchased new. Thankfully, its been stored inside for past 30+ years. Original owner and he still has the truck. Will introduce him to CC and see if he joins. It’s a 20 hour round trip but anything MJ worth it. I won’t be running the shell full-time, only as needed.



[Gjeep]

The journey was good and the SnugTop made it home. On the way back, I stopped at a handful of wrecking yard to get various hardware for this build.



Long live New Comer Racing – those billet grommets for the 96+ valve cover are beautiful. Going to get them for all the XJ’s. With those in-hand, I was able to get the new valve cover on, cables crossed over to the TB, breather lines, and heater core hoses in place. For the heater core/ hose setup, I eliminated the plastic valve of this 4.0L generation. Just straight hoses to the heater core.





[Gjeep]

Having a heck of a time getting the upper portion of the rear main seal out. It’s stuck. Tried what feels like endless approaches – too much fun. Needed to walk away from it, so I don’t set fire to the Comanche. Will circle back on this fun…



Decided it was time to have a look at the NOS automatic steering column that’s been tucked away for a bit. Was happy to find it’s a tilt column and all I need to fish through is the cruise control wiring as part of the stalk install. Only other thing to do is swap out the ignition cylinder. This is a later Renix era column so the ignition switch is oriented in one direction as compared to the HO years which is flipped the other way. I also found a NOS parking brake interlock kit that will be added to the mix.





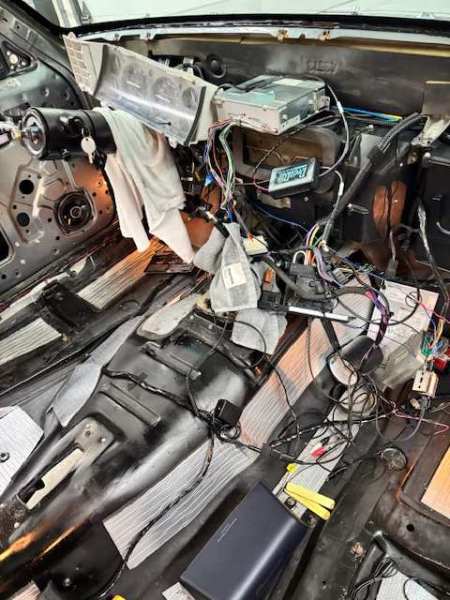

Next, I tackled the AC install engine bay side. Again, I’m going with the factory ‘94.5-‘96 R134 XJ set up. Got the drier and condenser into place and attached the related lines. Once I brought the radiator into the mix, I realized I’d have to use the old upper radiator horizontal support on the new radiator as it had integrated AC condenser bracketry tied into it. A cleaner install. No where near ready to charge as I still have the HVAC box out.
