ghetdjc320 Posted May 4 Author Share Posted May 4 I harvested all the connectors from my 90’ engine, dash and chasis harness. I have them all bagged as pigtails back stateside. Next year I’ll take detailed pictures of each one so they can all be ID’d and hopefully post reference links for the manufacturers Link to comment Share on other sites More sharing options...
schardein Posted May 4 Share Posted May 4 In reference to the headlamp connectors, are we talking the actual sealed beam or halogen headlamps? Those use a Packard 59 series terminal. They are similar to the Packard 56, except instead of a 1/4" wide male terminal, it is 5/16" wide. This wider terminal is also present in some positions of the bulkhead interface connectors and some positions of the starter switch. For the actual headlight switch connector, they use a terminal similar to a Packard 56. I don't have the actual part number, BUT a Packard 56 terminal WILL WORK, and could arguably be a better choice, as I feel they provide more contact surface, possibly reducing heat buildup and subsequent terminal and connector damage from heat. Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 21 Share Posted June 21 Taillight Connectors: These still need actual identification if anyone can help. The 1986 one is obviously a Weather Pack 6 Pin but I have no idea on the 1990 or 1991/1992 one. Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 21 Share Posted June 21 Tail Light, Rear Turn Signal, and license plate light sockets Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 21 Share Posted June 21 Fuel Pump and Sender (at least for a 1991) is Weather Pack 3 pin. Link to comment Share on other sites More sharing options...
ghetdjc320 Posted June 21 Author Share Posted June 21 Thanks for that info! I’ll try to pull the manufacturer & model numbers for those tail light harness connections. I’d really like to compile a picture thread of some sort. Perhaps some way of having descriptions and pictures of each connector. I think I probably bagged and tagged around 50-60 connectors from my 1990 harness. Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 21 Share Posted June 21 34 minutes ago, ghetdjc320 said: Thanks for that info! I’ll try to pull the manufacturer & model numbers for those tail light harness connections. I’d really like to compile a picture thread of some sort. Perhaps some way of having descriptions and pictures of each connector. I think I probably bagged and tagged around 50-60 connectors from my 1990 harness. I have the majority of a majorly hacked up 1991 harness except the engine harness and an okay 1996 engine harness I am going to work on. Whenever I pull the 1991 harness from the truck I can map that one but I believe it is also pretty hacked up. I hunted for hours on the 1991/1992 6 pin taillight harness at the back of bed and I am not completely terrible at it. Might be a Reddit special... I am really interested about the 6 pin that connects inside the cab. Link to comment Share on other sites More sharing options...

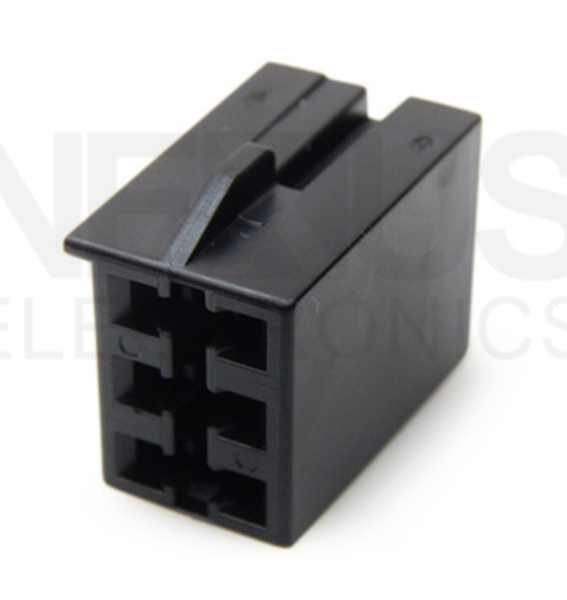

Torq_Shep Posted June 21 Share Posted June 21 Relay Block Source (I believe primarily Renix 87-90?) Link to comment Share on other sites More sharing options...
eaglescout526 Posted June 21 Share Posted June 21 9 hours ago, Torq_Shep said: I am really interested about the 6 pin that connects inside the cab. Might be metri-280 Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 22 Share Posted June 22 On 6/21/2024 at 6:29 AM, eaglescout526 said: Might be metri-280 It is not a metri-280. It is almost like a hybrid between a Metri-280 and an old Ford "Wedge Lock". I am beginning to wonder if this plug and the 1991-1992 taillight harness connector plug are Chrysler exclusive. The pins are also not like anything I have seen on another plug. The only markings on any part of the plug are: 16 451 and A4 And that is only on the wedge itself. Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 22 Share Posted June 22 One more note that I found when doing research on any of these plugs. PED stands for Packard Delphi at least according to one website I found. If you find a PED marking it likely has an Aptiv cross reference. Link to comment Share on other sites More sharing options...
eaglescout526 Posted June 22 Share Posted June 22 15 minutes ago, Torq_Shep said: old Ford "Wedge Lock" I wouldnt doubt this. AMC used an assortment of stuff. I am willing to bet that packard didnt have a connector capable to carry the amperage for the lamps and fuel pump and ford probably did for cheap. Link to comment Share on other sites More sharing options...
ghetdjc320 Posted June 23 Author Share Posted June 23 From what I’ve found sometimes it’s easier to identify the plug is you determine who manufactured the component that it plugs into. I’ve ID’d several Japan spec connectors now using that method. That 6 pin connector is an interesting one. I’ve gone through all the US spec connectors trying to ID it. Going to have to search through foreign spec connectors. Once Chrysler fully took over, they really standardized the connections. Noticed that on all the 97+ XJ/TJ models Link to comment Share on other sites More sharing options...
eaglescout526 Posted June 23 Share Posted June 23 43 minutes ago, ghetdjc320 said: That 6 pin connector is an interesting one Did you ever find the front main headlamp harness connector? AMC used it on the rear harness for the XJ as well and I think the HVAC control deck. Link to comment Share on other sites More sharing options...
ghetdjc320 Posted June 23 Author Share Posted June 23 7 hours ago, eaglescout526 said: Did you ever find the front main headlamp harness connector? AMC used it on the rear harness for the XJ as well and I think the HVAC control deck. Can you shoot me a picture of that connector? Link to comment Share on other sites More sharing options...
eaglescout526 Posted June 23 Share Posted June 23 4 hours ago, ghetdjc320 said: Can you shoot me a picture of that connector? Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 23 Share Posted June 23 I found one that I wasn't looking for... The vanity mirror lights are a Metri-Pack 150 series. Link to comment Share on other sites More sharing options...
Torq_Shep Posted June 23 Share Posted June 23 1987-1990 Tail Light Harness Connector Link to comment Share on other sites More sharing options...
eaglescout526 Posted June 23 Share Posted June 23 1 hour ago, Torq_Shep said: I found one that I wasn't looking for... The vanity mirror lights are a Metri-Pack 150 series. Clock and 87-88 radio is metri 150. Power mirrors are metri 150, there’s some connectors on the XJ rear harness that are metri 150. AMC used those suckers where they could in place of molex connectors. Link to comment Share on other sites More sharing options...
ghetdjc320 Posted June 23 Author Share Posted June 23 1 hour ago, Torq_Shep said: 1987-1990 Tail Light Harness Connector Nice finds Link to comment Share on other sites More sharing options...
ghetdjc320 Posted June 24 Author Share Posted June 24 Ok, we’re going to find these little wiring unicorns Link to comment Share on other sites More sharing options...

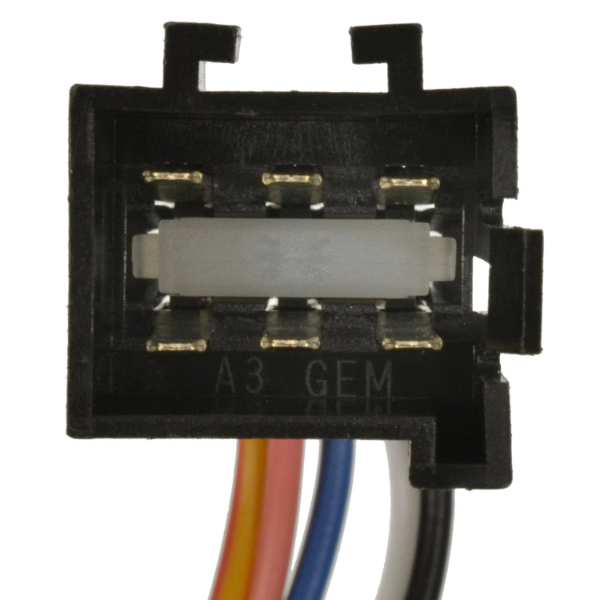

Torq_Shep Posted July 1 Share Posted July 1 On 6/24/2024 at 3:27 AM, ghetdjc320 said: Ok, we’re going to find these little wiring unicorns New info on the square 6 pin. This is the same connector as the brake light switch for a 1991 if you have cruise control. I just bought a new brake light switch and it had the mating side in a brand new part so I bet these housings/pins are still available somewhere! Link to comment Share on other sites More sharing options...
ghetdjc320 Posted July 1 Author Share Posted July 1 6 hours ago, Torq_Shep said: New info on the square 6 pin. This is the same connector as the brake light switch for a 1991 if you have cruise control. I just bought a new brake light switch and it had the mating side in a brand new part so I bet these housings/pins are still available somewhere! Good find. Will need to locate the supplier Link to comment Share on other sites More sharing options...
