Gojira94 Posted March 3 Author Share Posted March 3 A couple things done on Saturday. Mostly the HVAC (in my case heater only) box. If you've ever taken one out, the studs probably came out of the housing when you backed off the nuts on the engine side. I screwed mine back in with some black RTV in each hole for extra grip. I also put a drop of black RTV at the base of the studs and slipped on a thin rubber washer (5/16" x 3/4") for each of the 5 studs. On the outside I applied the same washers under each nut so they're sealed as well as possible against water intrusion. My OCD in overdrive... I capped off the pink line to what would have been the heater control valve (long gone) and looped the black line to the check valve off the main vacuum source line (partially hidden behind the cruise vacuum dump hose). Link to comment Share on other sites More sharing options...
Gojira94 Posted March 3 Author Share Posted March 3 Sunday I started working the Engine Control Harness. Mine is Renix, from 89 or 90, so no C101 to contend with. Some changes are needed to make it work. Injector #3 connector won't reach straight up and down, as Renix didn't have the throttle bracket where it is on my setup. Tilting it works, but the rear arch of the throttle bracket needs significant clearancing to get the connector under it. TPS and IAC wires have to come out of the harness and move back about 4" to reach on an HO throttle body. All HO intake designs have the throttle body base exactly the same position, distance and elevation from the intake ports in the (HO) heads. I also have to make a connector adapter from the Renix IAT sensor connector to the updated GM IAT, relocated far away on the horseshoe intake. It'll run along the valve cover and shoot across between injectors 2 & 3. I haven't cleaned my throttle body and installed the TPS adapter yet. Link to comment Share on other sites More sharing options...
Gojira94 Posted March 3 Author Share Posted March 3 Underneath, everything lines up well for O2, knock and CTS. Link to comment Share on other sites More sharing options...

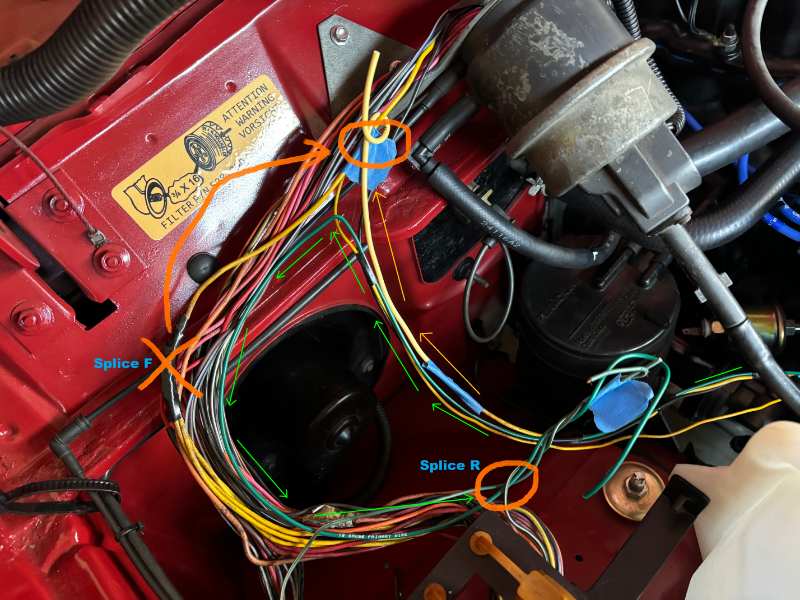

Gojira94 Posted March 3 Author Share Posted March 3 Rewinding back in time to my decision to relocate the coil and module- I wasn't sure if the connectors would reach. They don't. I'd hoped the wires for C213 & C214 would pull cleanly together out of the harness for extra slack to reach if not. They don't. So, what I'm doing is reorganizing it a bit to get C213 and C214 into one corrugated sheath and join the main part of the ECH between the cruise servo and blower motor. Yes, this is cutting into an intact survivor post-C101 Renix harness, but it would go back onto any other Renix, the only difference being extra length for C213 & C214. 1) Remove C213 pin C (18Ga, Grn w/trace) from splice R - extend green wire from C213 up and route back down and re-create the splice, so C213 & C214 can join the engine control harness at the same point. 2) Remove C213 pin A (14Ga Yel) from splice F - move further up, again so C213 & C214 can join the engine control harness at the same point. Link to comment Share on other sites More sharing options...
Gojira94 Posted March 4 Author Share Posted March 4 Coil and module move is done. I need to fix up the loom by the diagnostic connectors, though. In other news, the bumper is done and reassembled. Link to comment Share on other sites More sharing options...
Gojira94 Posted March 7 Author Share Posted March 7 Little bit of work done on lunch break after working in Raleigh the last 2 days. I made the extension for the IAT sensor and got it tucked in the way I want it. Also tidied up the passenger side end of the Engine Control Harness. Link to comment Share on other sites More sharing options...
Gojira94 Posted March 12 Author Share Posted March 12 Home brew fan control harness, missing on my rig: Link to comment Share on other sites More sharing options...
Gojira94 Posted March 12 Author Share Posted March 12 System wiring under the hood nearing completion. Alternator and external regulator wired. Big ground point added in RH fender panel. Tied into original alternator's yellow wire for switched 12V for the regulator, then zip tied and tucked the original alt connector. Power distribution about buttoned up. 200A alternator fuse (160A alt). Mockup battery is from 2016 according to the sticker on it lol. Good core for when I'm ready. The starter relay is backwards and upside down for fitment. Link to comment Share on other sites More sharing options...
Gojira94 Posted March 14 Author Share Posted March 14 Minor update- I got the fan relay arrangement buttoned up and loomed, ballast resistor hung. I still need to terminate the power connection for the fan motor, I'm out of zip ties long enough to piggyback on the engine harness crossover under the chin. I've got the washer line plumbed and wires loomed. Just need to make the connections. For the low washer lamp I'm missing Pin 15 on C204, like most if not all pre-HO MJs. I'll tuck in the connector for C168 for now. I need to go harvest a pin for the instrument cluster soon so I can pretty much do what @Airborne Janitor did for his. Link to comment Share on other sites More sharing options...

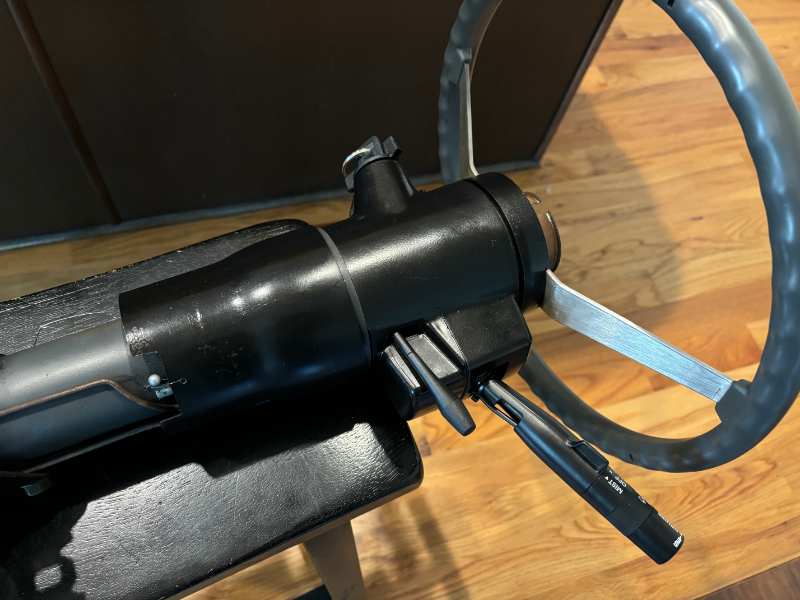

Gojira94 Posted March 16 Author Share Posted March 16 Wiring work, and everything else under the hood, complete. Now, onto the interior wiring and dash. Also need to clean the header panel and reinstall it, along with the front bumper. Link to comment Share on other sites More sharing options...
89 MJ Posted March 16 Share Posted March 16 That looks like new. Great work. Link to comment Share on other sites More sharing options...
Gojira94 Posted March 17 Author Share Posted March 17 2 hours ago, 89 MJ said: That looks like new. Great work. Thank you! It’s a long road… to the road lol. Link to comment Share on other sites More sharing options...
Gojira94 Posted 10 hours ago Author Share Posted 10 hours ago ~HAPPY 38TH BIRTHDAY TO MY MJ~ 1JTHS641XHT137765 Build date 3/30/87 Body code TL61 Sold by CROSS COUNTRY MOTORS, INC, WILSON NC (Long gone, was 25 minutes east of where she sits now) *X1 -Y1 APA MONOTONE PAINT PACKAGE CBA BENCH SEAT - STRAIGHT BK CGX Head Restraints-Outboard Seating, RR DCB Transmission - 4-Speed Manual EPD ENGINE - 2.5L I4 TBI GAS HCC HEATER W/UPR LEVEL VENTIL - TYPE II LAP FUEL ECONOMY SHIFT INDICATOR LIGHT LMA HALOGEN HEADLAMPS MBJ Bumper - Front, Black MDA FRT LICENSE PLATE ATTACH REQUIRED NAA ESA W/CATALYST (EXC CALIF SYSTEM) PE4 Colorado Red QE4 Colorado Red SBA POWER STEERING TBG SPARE TIRE - COMPACT WMC BASE WHEEL DRESS - UP (INCLS TRIM RING) Link to comment Share on other sites More sharing options...
Gojira94 Posted 10 hours ago Author Share Posted 10 hours ago Transfer case is in and Part-Time light is wired. However... I've remembered that the 93 YJ it came from had CAD. Turns out ALL YJs had CAD. And the 231 yoke on the YJs used straps instead of bolts. I do have a 231 from a 98 XJ that's for parts (locked up solid, haven't taken it apart yet). I can swap the yoke but man, that would have been easier to do on the garage floor. Last gift of the YJ case is this little factoid I remember from early project research. No big deal, just something to keep in mind for now. The early NP231 transfer case used in conjuction with vacuum controlled front axle hub disconnect on early XJ & YJ Jeeps did not have a true neutral disconnect between front and rear axles when the 231 is shifted into neutral, as controlled by crown in the sector plate on the left. The later 231's did have true front / rear disconnect, as controlled by the valley in the sector plate, right. Link to comment Share on other sites More sharing options...
