Help identifying fuel pump relay


Recommended Posts

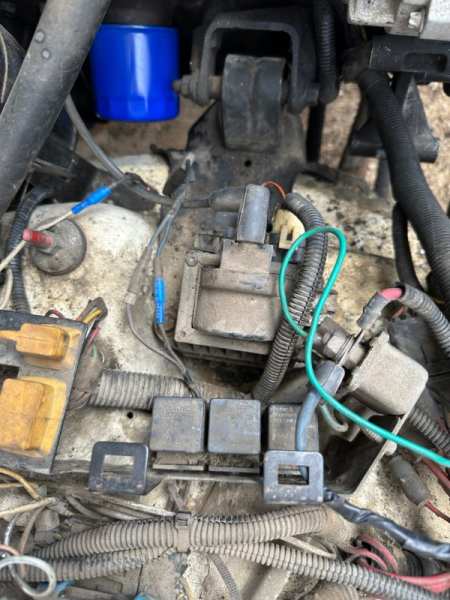

I have a 1989 jeep Comanche 2.5l 2wd. Which one of these relays is the fuel pump? Fuel pump was turning on, now it’s not…. Pretty sure the fuel pump just crapped out. But still wanting to identify these relays… thank you


Link to comment
Share on other sites

swap left and middle relay and see if pump runs...

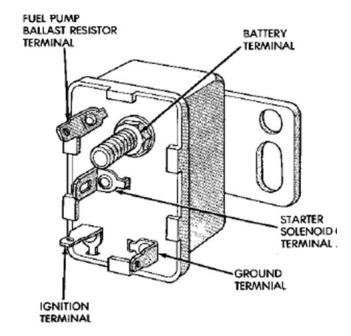

On the right is the start relay...  beside the threaded stud is a single blade connector

this is part of the fuel pump circuit, it energizes the pump during start sequence



you can pull that connector ( it will be female) then jump that female connector to the + battery terminal with a jumper wire

fuel pump should run.



on driver's side fender beside air box it the ballast resistor..  make a jumper between the two terminals to see if pump will run.

if it does, then replace resistor



do one thing at a time though...
