1J7FJ36L6KL511124

[TheNerfsmith]

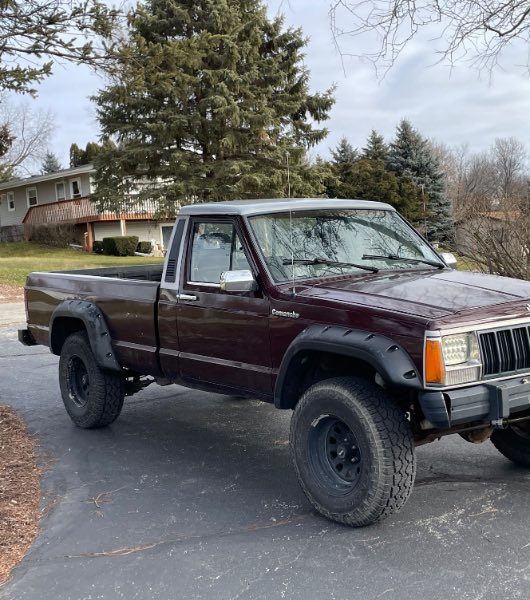

89 Comanche Pioneer



Ax-15 4x4

Dana 35 front, 44 rear

Longbed



The Comanche was repainted and much of it was redone, but I have decided to restore it to what it should be.

The door sticker was destroyed or defaced in the process before it reached my ownership.


Being from Illinois I’m glad the undercarriage was coated for protection.

[jdog]

BODY: JM62

BUILD: 01/28/89

SELLING DEALER: BUMGARNER JEEP EAGLE

HICKORY, NC

X1	DESCRIPTION NOT AVAILABLE	-H9	DESCRIPTION NOT AVAILABLE	ADH	HEAVY DUTY ELECTRICAL GROUP
ADLA	SKID PLATE GROUP	AHY		ALN	BUMPER
BA1P	DESCRIPTION NOT AVAILABLE	BCYP	95 AMP BATTERY	CBAP	STRAIGHT BACK BENCH SEAT
DGB	ALL 4-SPEED AUTOMATIC TRANSMISSIONS	DHTP	SHIFT-ON-THE-FLY,P/TIME T/CASE	DRKP	REAR AXLE
EAAC	ALL ENGINES	EAFC		ERB	4.0L I6 MPI ENGINE
GEC	FRONT LEFT SIDE SLIDING WINDOW	GFDA	REAR SLIDING WINDOW	GRZP	LEFT REMOTE MIRROR
GSZP	RIGHT REMOTE CONTROL MIRROR	GTZA	MANUAL REMOTE MIRRORS	HAA	AIR CONDITIONING
JHAA	VAR INTERMITTENT WINDSHIELD WIPERS	NHBP	AUXILIARY TRANSMISSION OIL COOLER	NMCP	HEAVY DUTY ENGINE COOLING
PE8	DESCRIPTION NOT AVAILABLE	RAAC	ALL RADIO EQUIPPED VEHICLES	RABA	OPEN
RCDP	4 SPEAKERS	SUA	TILT STEERING COLUMN	TAAC	ALL TIRES
TAEA		TBBA	FULL SIZE SPARE TIRE	TMWA	TIRES
WJM	15X7.0 CHROME WHEELS	XEEP	FUEL TANK SKID PLATE SHIELD	XEFP	TRANSFER CASE SKID PLATE SHIELD
XEUP	FRONT SUSPENSION SKID PLATE	YGBA	1 ADDITIONAL GALLONS OF GAS	YGGA	9 ADDITIONAL GALLONS OF GAS
Z01P	REAR SPRING GROUP I	Z67P	LEFT FRONT SPRING GROUP XVI	Z86P	RIGHT FRONT SPRING GROUP XV
5AMA	JF/3450 VEHICLE FAMILY	5KNA

APAS	MONOTONE PAINT	BGAS	POWER FRONT DISC/REAR DRUM BRAKES	BJAS	DESCRIPTION NOT AVAILABLE
BKPS	10X2.5 REAR DRUM BRAKES	CKAS	CARPETS - FLOOR AND CARGO AREA	CSRS	DO NOT USE - SEE CLASS JV
DGSS	4-SPEED AUTOMATIC AW4 TRANSMISSION	DHAS	LOCK-UP TORQUE CONVERTER	DHNS	COMMAND-TRAC PART TIME 4WD SYSTEM
DJHS	230MM FRONT AXLE	DMDS	3.55 REAR AXLE RATIO	GACS	TINTED GLASS WINDOWS
GBBS	TINTED WINDSHIELD GLASS	GCBS	FRONT DOOR TINTED GLASS	GNAS	REAR VIEW DAY/NIGHT MIRROR
JAAS	INSTRUMENT PANEL	JAZS	DO NOT USE - SEE JP, KA CLASSES	JBDS	INSTRUMENT PANEL SATIN SILVER BEZEL
JCAS	85 MPH PRIMARY SPEEDOMETER	JJAS	CIGAR LIGHTER	JKBS
KKES	DESCRIPTION NOT AVAILABLE	K2XS	STRIPE/BADGE/MOLDING/COLOR	K3ES	STRIPE/BADGE/MOLDING/COLOR
LAFS	SEAT BELT ALERT-DRIVER SEAT ONLY	LBCS	GLOVE BOX LAMP	LCJS	OVERHEAD AMBIENT SURROUND LIGHTING
LMAS	HALOGEN HEADLAMPS	MBJS	BLACK POWDER COATED FRONT BUMPER	MB1S	BLACK FRONT BUMPER
MFGS	HEADLAMP BEZEL	MHAS	BLACK WINDSHIELD MOLDINGS	MMCS	REAR SWING DOOR PANEL INSERTS
MMGS	BELT MOLDINGS	MMKS	LOWER GRILLE SURROUND-PAINTED SILVER	NAAS	FEDERAL EMISSIONS
NBAS	UNDERGROUND CALIBRATION	NBKS	EVAP CONTROL SYSTEM	NDAS	CATALYTIC CONVERTER
NF5S	23 GALLON FUEL TANK	QE8S	DESCRIPTION NOT AVAILABLE	SBAS	POWER STEERING
SCES	STEERING WHEEL	SFAS	STANDARD DUTY FRONT SHOCK ABSORBERS	SGAS	STANDARD DUTY REAR SHOCK ABSORBERS
TBMS	TIRE CARRIER WINCH	XBSS	PICKUP BOX	XFAS	-35F PROTECTION ANTI-FREEZE
YAAS	BUILD TO U.S. MKT. SPECIFICATIONS	Z5AS	GVW/PAYLOAD RATING	1AAS	U.S. DEALER RETAIL
167S	ZONE 67-CHARLOTTE
